HQM-600 Series Modular UPS 60-840kVA with 60kVA power module
Datos del producto:
| Lugar de origen: | China de Shenzhen |
| Nombre de la marca: | HRD/OEM |
| Certificación: | CE |
| Número de modelo: | HOM300, HQM400, HQM500, HQM600 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 |
|---|---|
| Precio: | 21000USD/PCS |
| Detalles de empaquetado: | Normas para la exportación |
| Tiempo de entrega: | Dentro de las 2 semanas |
| Capacidad de la fuente: | 100 piezas al mes |
|
Información detallada |
|||
| El color: | Negro | El tipo: | El inversor de nivel 3 más avanzado en línea |
|---|---|---|---|

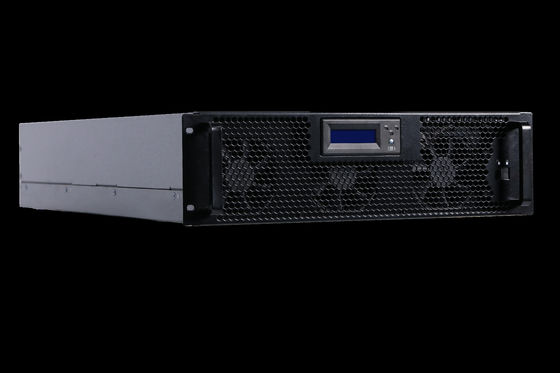

| Control de las emisiones: | control completo del DSP | Módulo de energía: | 60kVA/60kW, soporte de 3U |
| Eficiencia: | 960,5% en modo normal | PF de entrada: | por encima de 0.999 |
| Thdi: | menos del 3% para carga lineal, menos del 5% para carga no lineal | En paralelo: | 3 unidades, con una potencia de hasta 1800 kVA |
| Cargador: | Cargador ABM, con 3 etapas de carga, maximizar la duración de la batería | Interfaz: | Los contactos secos RS232, RS485, USB, SNMP, AS400 y programables |
| Muestra: | 10.4 pulgadas de color con pantalla táctil | El paseo de energía en: | - ¿ Qué? |
| Protección: | Protección completa, sobrecarga, cortocircuito, etc. | sueño inteligente: | Sí, ahorrar energía |
| PF de salida: | 1.0 | El THDu: | La carga lineal de THDu es < 1% y la carga no lineal de THDu < 5% |
| Voltado de salida: | Las emisiones de gases de efecto invernadero de las instalaciones de combustión interna se determina | Aplicación: | Telecomunicaciones, ordenador, gobierno, financiero, fabricación |
| Protección: | Cortocircuito, sobreintensidad de corriente, sobretensión, sobrecarga, cargas desequilibradas | Fase: | Tres fases |
Descripción de producto

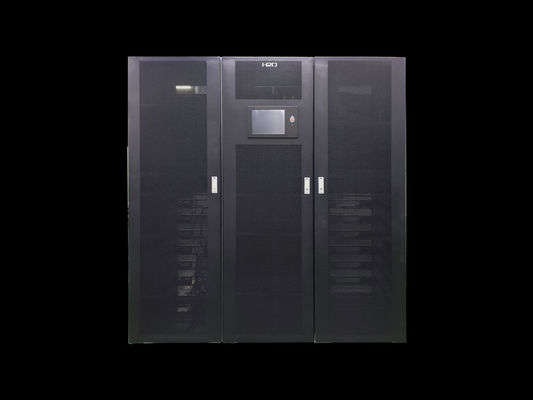

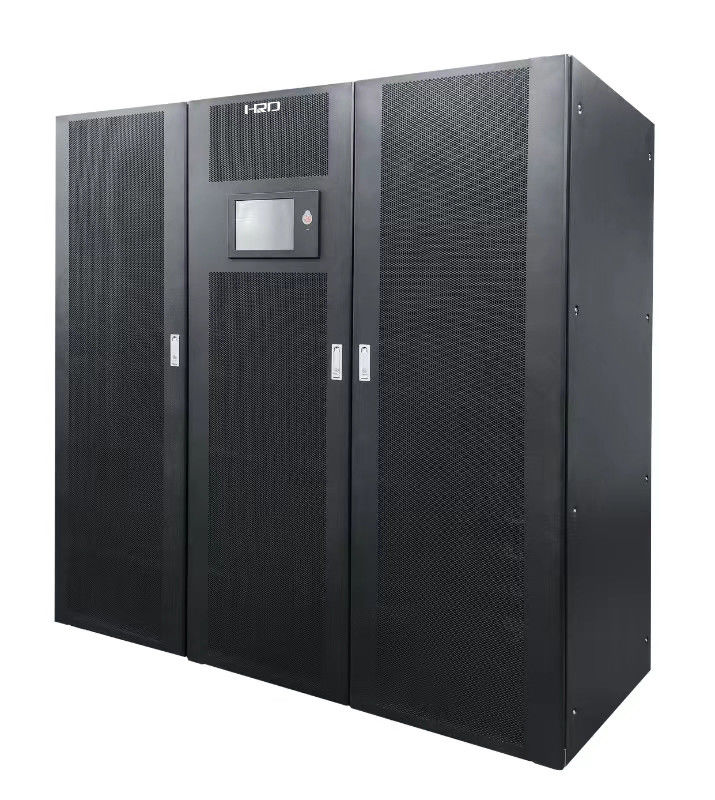

Name: HQ-M 600 Series 60-840kVA Online Modular UPS
Model: HQ-M 600 series
Brief:
Power range: 60～840kVA;
Module Capicity: 60kVA;
Configuration: 1-14 slots;
Application:
Data center, telecom, network, security, lab, metro, hospital, government, military, power, transportation, broadcasting, bank, university, scientific research, petrochemical etc.
Features:
l Full DSP digital control in the process of rectification, inverter, charging and discharging
l Intelligent battery management solution, adopted intelligent “third-order”battery charging and discharging management system, extend battery life
l Input power factor up to 0.999, input harmonic current: <3%, 3 level inverter ,system efficiency above 96.5%
l Intelligent system self-diagnosis, plentiful fault records, large history record storage capacity
l Friendly human machine interface, with big touch screen and keyboard, abundant information
l Three phase in, three phase out, double conversion online system, provide best electricity quality and load protection

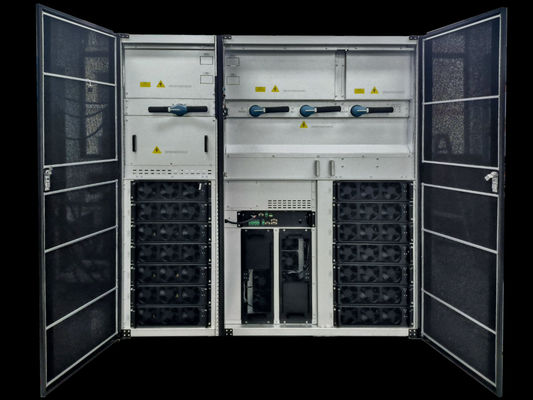

l Modular design, supporting hot plug, conveniently maintain on-site
l Excellent load adaptability, overload and short circuit capability
l Digital circulation control technology, high reliability in parallel up to 3 racks,reaching 1800kVA
l Smart-sleep function, the system can intelligently shutdown some modules according to load ,achieving higher efficiency
l Multiple communication interface:RS232,RS485,USB, SNMP, AS400 and programmable dry contacts
l EPO function
| Model | HQM600/60 | HQM840/60 | HQM1000/62.5 | ||||
| Rated Power | 600kVA/600kW | 840kVA/840kW | 1000kVA/1000kVA | ||||
| Power module |
60kVA/60kW 60kVA/60kW |
60kVA/60kW 60kVA/60kW |
62.5kVA/62.5kW 62.5kVA/62.5kW
|
||||
| Nos of Power module | 10 | 14 | 16 | ||||
| Physics | |||||||
|
Cabinet Dimension ( WxDxH mm) |
1000*1100*2000 | 1800*850*2000 | 3600*1000*2000 | ||||
| Module(W*D*H)mm | 440*720*130 (3U) | 440*720*174 (4U) | |||||
| Mains | Input PF | >0.99 | |||||
| THDi | <3%100% Linear load,<5% for Non-linear load | ||||||
| Voltage range |
304～478Vac(line-line) 100% load; 228V~304Vac (line-line) load derated from 100%-75% linearly |
||||||
| Freq. range | 40-70Hz | ||||||
| Battery | Rated voltage | ±240VDC(432～ 528Vdc; 36 ～ 44settable) | |||||
| Charging accuracy | ±1% | ||||||
| Bypass | Rated voltage | 380/400/415VAC(L-L) | |||||
| Voltage range | Range: -40%- +25% , Settable, default -20%～+15%； | ||||||
| Overload | 125%, long time operation 125%< load <130%, 10mins 130%<load <150%,1min,>150%,300ms | ||||||
| Inverter | Ratedvoltage | 380/400/415VAC(L-L) | |||||
| RatedFreq. | 50/60Hz | ||||||
| Output PF | 1.0 | ||||||
| Voltage accuracy | ±1.0% | ||||||
| Load response | <5% (20% - 80% -20% step load) | ||||||
| Recovery time | < 20ms (0% - 100% -0% step load) | ||||||
| Output THDu | <1%(linear load),<5% (non-linear load according to IEC 62040-3) | ||||||
| Overload | 105% long time；105%-125%,1 mins；>150%,200ms | ||||||
| Frequency accuracy | 0.1% | ||||||
| Synchronize window | Settable,±0.5Hz-±5Hz,default ±3Hz | ||||||
| Slew rate | Settable,0.5Hz/S-3Hz/S,default 0.5Hz/S | ||||||
| Crest factor | 3:1 | ||||||
| Phase Accuracy | 120°±0.5° | ||||||
| System | Efficiency | Normal Mode≥96.5%；Battery Mode≥96.5% | |||||
| Display | LED + 10.4 inch touch Screen | ||||||
| Certification- Safety | IEC62040-1, IEC60950-1 | ||||||
| Certification- EMS | IEC62040-2；IEC61000-4-2(ESD)；IEC61000-4-3(RS)；IEC61000-4-4 (EFT)；IEC61000-4-5 (Surge) | ||||||
| IP degree | IP20 | ||||||
| Configuration | USB, RS232, RS485, Dry contact, Cold start, Air filter | ||||||
| Option | SNMP card,AS400 card,Parallel kit,SPD,LBS | ||||||
| Environment | 0-40℃(operation)；-25℃~70℃(storage)；0-95% (Humidity, non-condensing ) | ||||||
| Noise(dB)(1 meter) | 72dB @ 100% load, 69dB @ 45% load | ||||||
Note: Specification is subject to change without further notice.
